Safe and efficient off-policy reinforcement learning.

This work was co-authored by my colleague Kais Cheikh.

Refrences :

[1] Thomas G. Dietterich. Hierarchical Reinforcement Learning with the MAXQ Value Function Decomposition. Journal of Artificial Intelligence Research,13 :227–303, 2000.

[2] Rémi Munos, Thomas Stepleton, Anna Harutyunyan, and Marc G. Bellemare.Safe and efficient off-policy reinforcement learning. Advances in Neural Information Processing Systems, (Nips) :1054–1062, 2016.

Code :

'''
This code was implemented in the course MAP670C Reinfocement Learning by Bechir Trabelsi and Kais Cheikh from this article comes from.

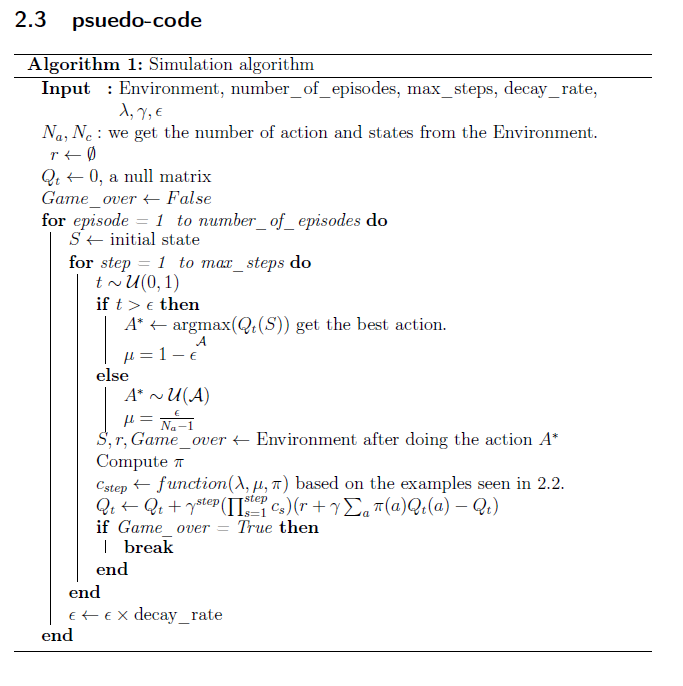

This code was done to implement the algorithm proposed in the paper " Safe and efficient off-policy reinforcement learning "
'''
# Packages import
import numpy as np
import gym
import random
# Function to compute cs parameter depending on the algorithm.
def compute_cs(algo, mu, pi, Lambda):
# Possible values for algo are IS, Off-policy, TB, Retrace
if algo == "IS":
return pi/mu
if algo == "Off-policy":
return Lambda
if algo == "TB":
return Lambda * pi

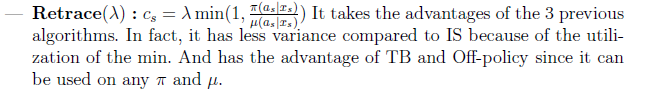

if algo == "Retrace":
return Lambda * min(1, pi/mu)
# The simulator that runs the algorithms
def simulator(env, algo= "Retrace", epsilon= 0.5, decay_rate= 0.99, total_episodes= 10, max_steps= 100, Lambda= 1, gamma= 1):
''' function that simulate the training of an algorithm.
inputs:
env: a gym object containing the environment.
algo: a string in this list  ["IS", "Off-policy", "TB", "Retrace"], represent the algorithme used to compute the Q-value.
epsilon: a float between 0 and 1 for the epsilon-greedy part.
decay_rate: a flot between 0 and 1 it represent the speed of decay of the epsilion term in the epsilon-greedy part.
total_episodes: a positive intger represent the number of episodes to be simulated.
max_steps: a positive intger represent the number of steps taken at each episode.
Lambda: a float represnt the update in the Q-values.
gamma: discount factor.
outputs:
rewards: a list of rewards at each episode.
Q: the Q values matrix.
'''
# Environment parameters
n_actions= env.action_space.n # number of actions
n_states = env.observation_space.n # number of states
Q = np.zeros((n_states, n_actions)) # Initialize the Q matrix
rewards = [] # List of rewards
'''         The algorithm  '''
# Simulate different episodes
for episode in range(total_episodes):
# Reset the environment
state = env.reset()
step = 0
done = False # Boolean variable, in case the game is over to stop looping over the steps.
total_rewards = 0
cs = 1
# strat playing/interacting
for step in range(max_steps):
''' epsilon greedy part'''
# Compute the random variable
t = random.uniform(0, 1)
# We initialize the probabilty mu
mu = 1
# Exploitation choose the most likely action to be done.
if t > epsilon:
action = np.argmax(Q[state,:])
mu = 1 - epsilon
# Exploration choose a random action.
else:
action = env.action_space.sample()
mu = epsilon / (n_actions - 1)
# Compute the new state, it's reward and whenever the game is over or not.
new_state, reward, done, info = env.step(action)
a_star = np.argmax(Q[new_state])
probabilities = [epsilon / n_actions] * n_actions
probabilities[a_star] += 1 - epsilon
sum_prb = 0
# compute cs
cs  *=  compute_cs(algo= algo, mu= mu,
pi= probabilities[a_star], Lambda= Lambda)
# compute the Expectation over pi of Q.
for i in range(n_actions):
sum_prb += probabilities[i] * Q[new_state, i]

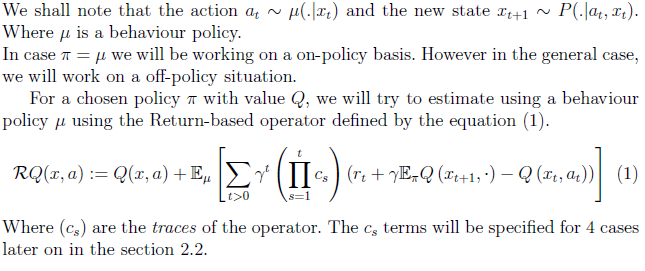

# Update the Q(x,a) using the equation in (3) in the paper and (1) in our report.
Q[state, action] += (gamma**step) * cs * (reward + gamma * sum_prb - Q[state,action])
# We add the new reward
total_rewards += reward
# We switch to the new state
state = new_state
# If done (if we're dead) : finish episode
if done == True:
break
# Reduce The epsilon value since with time we prefer more exploitation than exploration.
epsilon *= decay_rate
rewards.append(total_rewards)
return rewards, Q

Simulation code :

https://github.com/BechirTr/Some_Projects/blob/ac0d3975f5969903a0fcf67cf72f7d9cae42d272/Python/Reinforcement%20Learning/project-RL-sim.ipynb
